Displays & Readouts

SI8000 & SI8400 - Industrial Computers Loaded with Excellent Software

Solartron introduces a high-powered readout with a 15.6" capacitive touch screen, the capability to network up to 64 sensors, and multiple levels of software for various applications.

High customisability, extra channels, and easier product updates meaning software packages can be easily installed...

SI 8000 Features

• 15.6" touch screen, Windows based
• Up to 64 sensors
• Excellent for Simpler and Manual applications
• Runs all Orbit Modules
• Standard will include Formula Building/Save Programs
• Optional Mastering & Picture Insertion
• Programmable buttons
• Save data to Excel
• Generate custom maths formulas
• View data logs
• Upgrading Package: Track mastering trends for gauges and different operators. Customise diagrams and charms. Import photos or diagrams and then place custom readings, bar graphs, or dial gauges on screen.

SI 8400 Features

• 15.6" touch screen, Windows based
• Up to 200 sensors
• Supports manual, semi-automatic, and automatic fixturing
• Handles any complex application
• Service Maintenance Agreements and Setups are available
• Fully loaded package
• Pre-loaded measurement templates
• Robot handshaking
• Mastering (Integrity)
• Upgrade options available
• Verification & traceability offers set up of operator names, serial numbers, shifts, etc.
• Multiple ways to customise display and data screens available, such as inserting columns, images, instructions, etc.

Computer Specks

• Fanless Industrial PC
• Extremely high quality standards
• 15 inch capacitive touch screen
• IP 65 on front
• VESA and panel mount options
• HDMI and DP++ outputs for connections to larger screens (if needed)
• Chip: Intel Core i5 Quad Core
• Connects with all Orbit Sensors and Modules
• Easily runs Orbit GCS or OGS or any future software
• 8 GB of memory, 500 GB of storage

View Brochures and Drawings

Please click the links to view and download the following information:

Orbit Digital Gauge Catalogue.

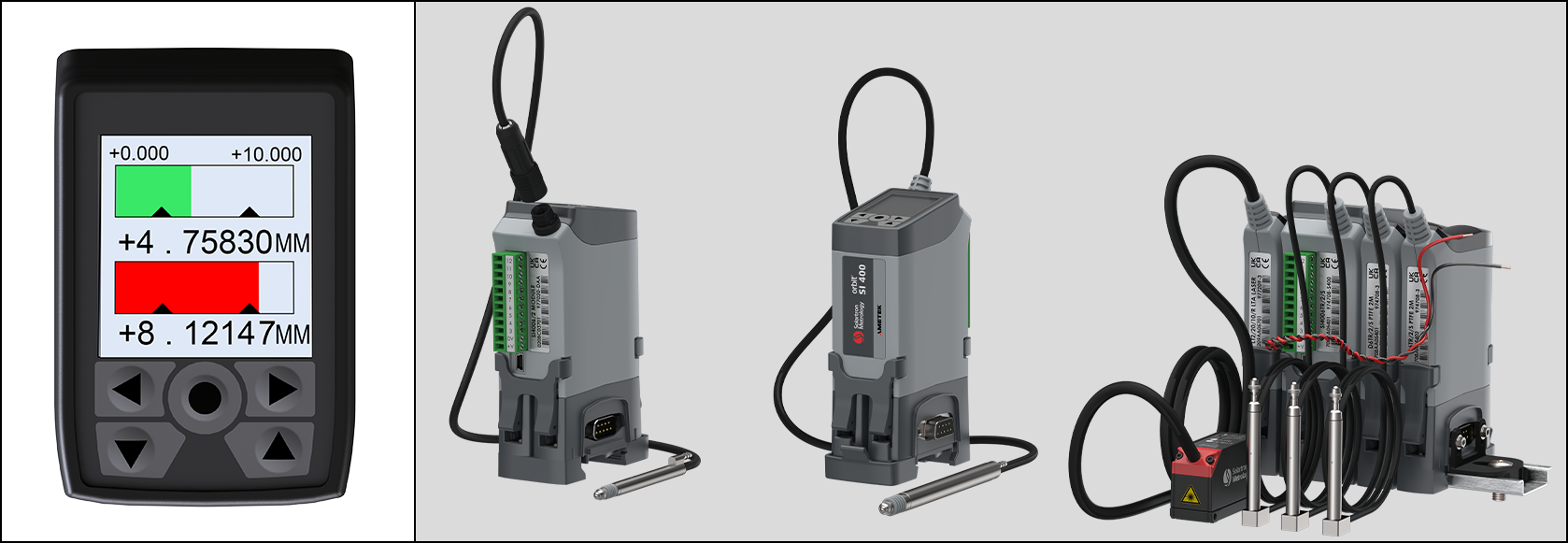

Orbit ACS Readouts - Quick, Cost-Effective Checks & Easy Gateways into a PLC

The SI100 is a single channel, stand alone system, while the SI200 also connects to an Orbit® probe for two channel measurements and the SI400 connects to up to 3 probes.

Key Features

View Brochures and Drawings

Please click the links to view and download the following information:

Orbit Digital Gauge Catalogue.

Orbit Readouts - Solutions for Small Systems

Solartron has a range of digital readouts to suit all applications from industrial panel mount to desk top units. Readouts can have from 1 to 31 channels of measurement and can be configured for custom applications.

Specially designed to work with Solartron Orbit® Digital Transducers, the SI3500 and SI5500 provide the user with solutions for small systems. Both readouts have intuitive menu systems for ease of set up and can be programmed to display readings, alarms, limits and other metrology functions. With discrete I/O and serial interfaces these readouts provide a neat solution to interface to other systems like PLC’s.

• SI 3500 2 Channel Readout
• SI 5500 32 Channel Readout

View Brochures and Drawings

Please click the links to view and download the following information:

Orbit Digital Gauge Catalogue.

Inductive Transducer Readouts - Programmable, Intuitive, and Easy to Use

Specially designed to work with Solartron Transducers, the SI3100 provides the user with 1-2 channel solutions for small systems. The readout has an intuitive menu systems for ease of set up and can be programmed to display readings, alarms, limits and other metrology functions. With discrete I/O and serial interfaces these readouts provide a neat interface to other systems like PLC’s.

Key Features

• Intuitive menu
• 2 LVDT inputs
• Mathematical functions
• Auto Colour Change for in/out limit range
• RS232 Connectivity
• Discrete I/O

View Brochures and Drawings

Please click the links to view and download the following information:

Orbit Digital Gauge Catalogue.
