Orbit® Gauge Software 5

Orbit Gauge Software 5.0 - Designed with Ease and Efficiency in Mind

Introducing Orbit® Gauge Software 5.0 (OGS 5), the next generation of  Solartron precision measurement software, with Multi-Nest functionality, and seamless integration of sensors, PLCs and barcode scanners.

Equipped with modern UI, advanced metrology calculations, built-in scripting, and hardware simulation tools, OGS 5 is designed to facilitate gauge automation, data collection and maintain traceability from day one.



Key Features

• Fast & Simple - Get up and running in less time with an easy, intuitive setup.
• Multi-Nest Functionality - Allows multiple stations within a single gauge line, meaning simultaneous measurements of multiple parts, utilising the gauge hardware fully. Supports up to 6 inline or parallel nests.
• 3rd Party Integration - Supports barcode scanners, sensors, and other external devices via an rs232 parser and plugin interface.
• Barcode Scanning - Enables multi-field barcode reading for program automation and traceability information collection.
• Modern Design - Updated visuals and UI, a modern program for modern applications
• EIM & Data Collection - Supports dynamic/manual data collection with full history and charting
• Scripting - Built-in functionality reduces need for custom scripts
• Serial Parser - Integrates with various hardware including wireless tools
• PLC - Enables direct PLC connectivity
• Simulation Tools - Simulates inspection operations, allowing remote support for troubleshooting, and process validation & integration testing before operation deployment

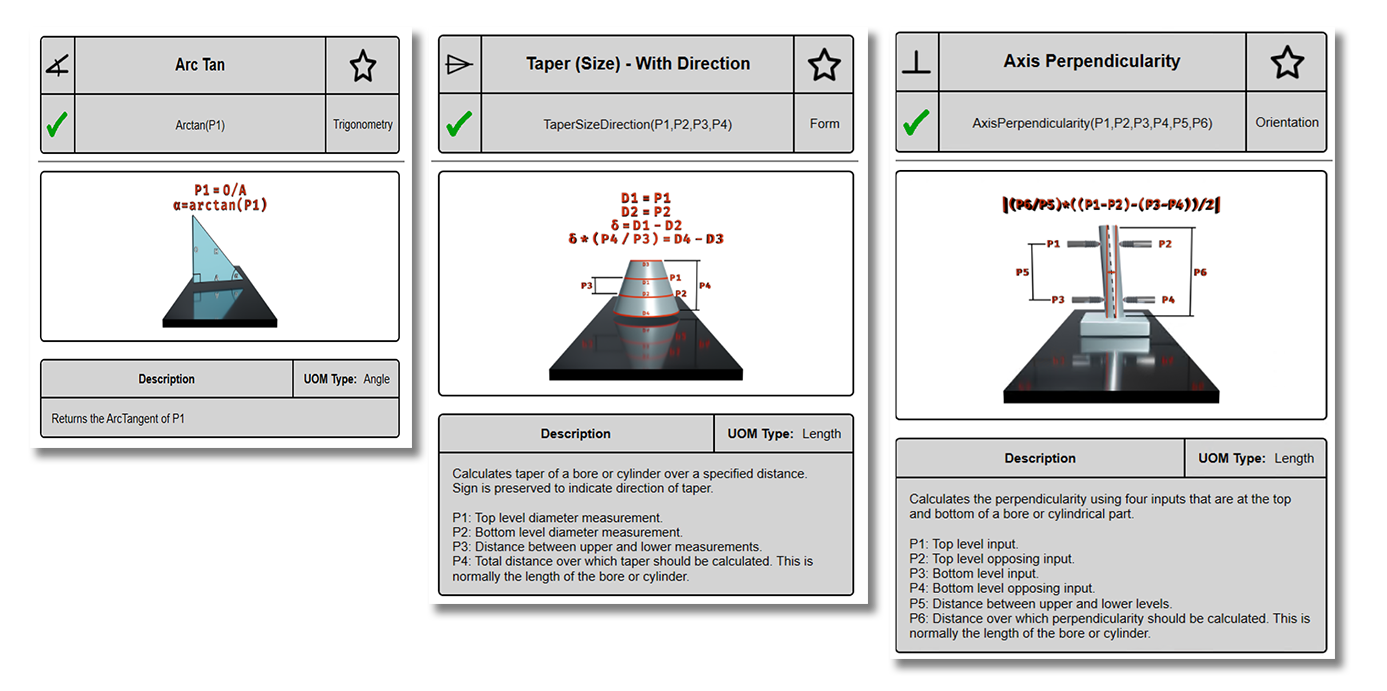

Measurement Templates

OGS 5 includes Measurement Templates that provide an easy way to configure part‑characteristic measurements using pre‑defined mathematics required for the measurement calculations. OGS 5 offers templates for general math, form, profile, orientation, and location characteristics. Templates can also be imported and exported, enabling a library of measurement calculations to be built for quick implementation in new inspection applications



Find out more in the link below:

Measurement & Measurement Templates

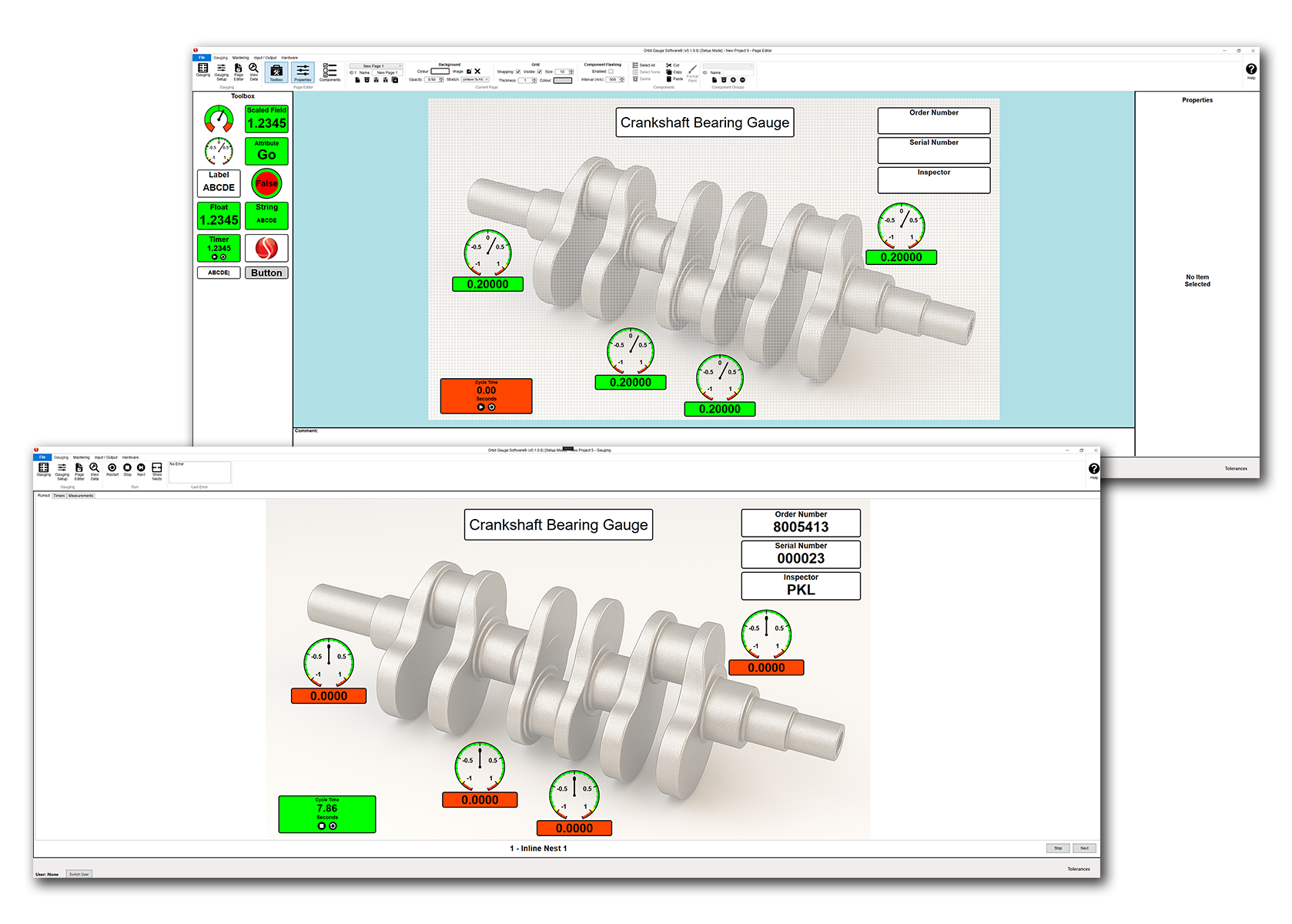

Intuitive User Interface

The Orbit Gauge Software 5 Page Editor consists of a menu ribbon, component panel, page designer, properties panel and components list. This set up is fully customisable.



Find out more in the link below:

Intuitive User Interface



View Brochures and Drawings

Please click the links to view and download the following information:

Multi-Nest Functionality Example

Datasheet

Orbit Digital Gauge Catalogue

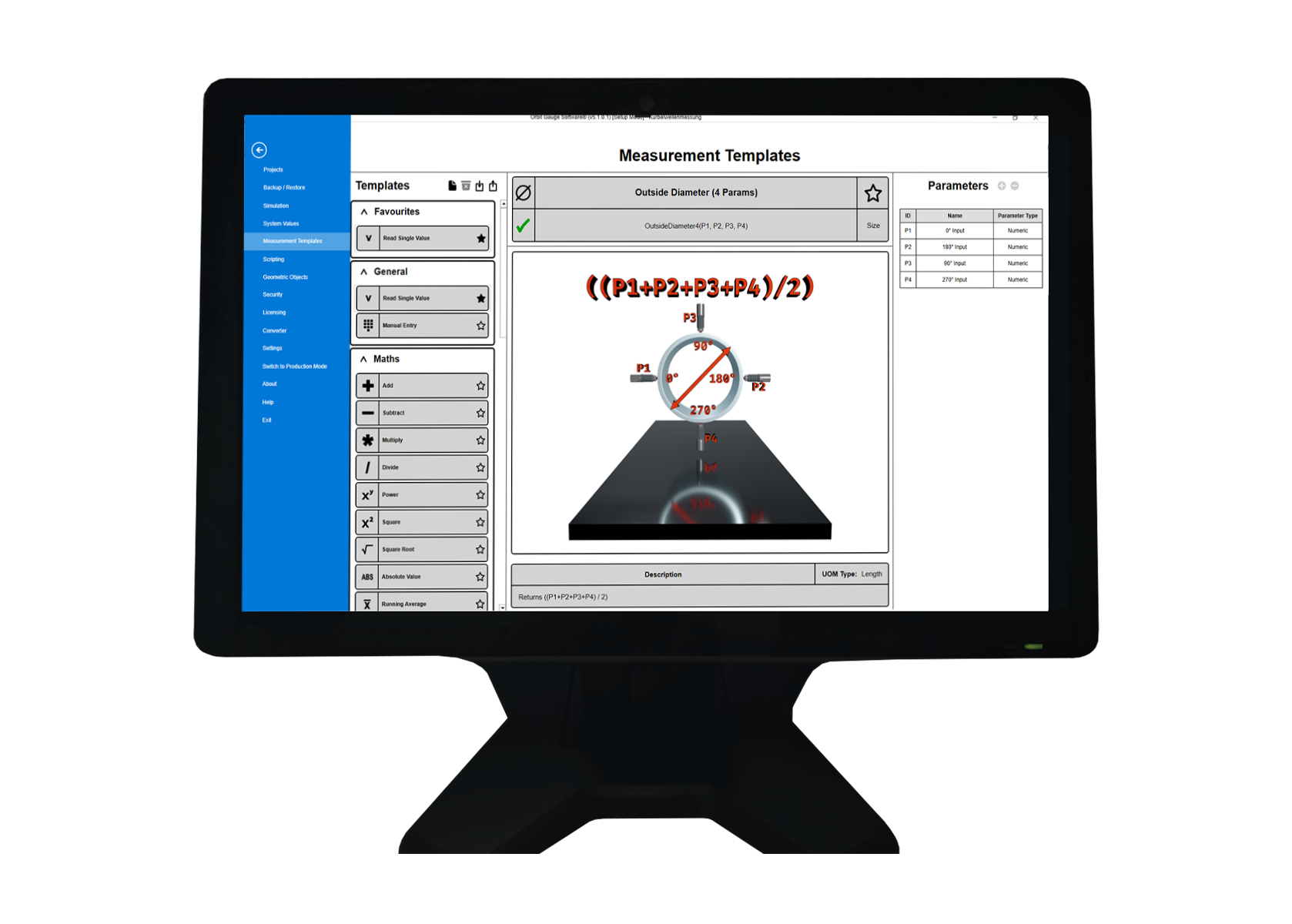

SI 8500 - Heavy Duty & High Powered Hardware for OGS5

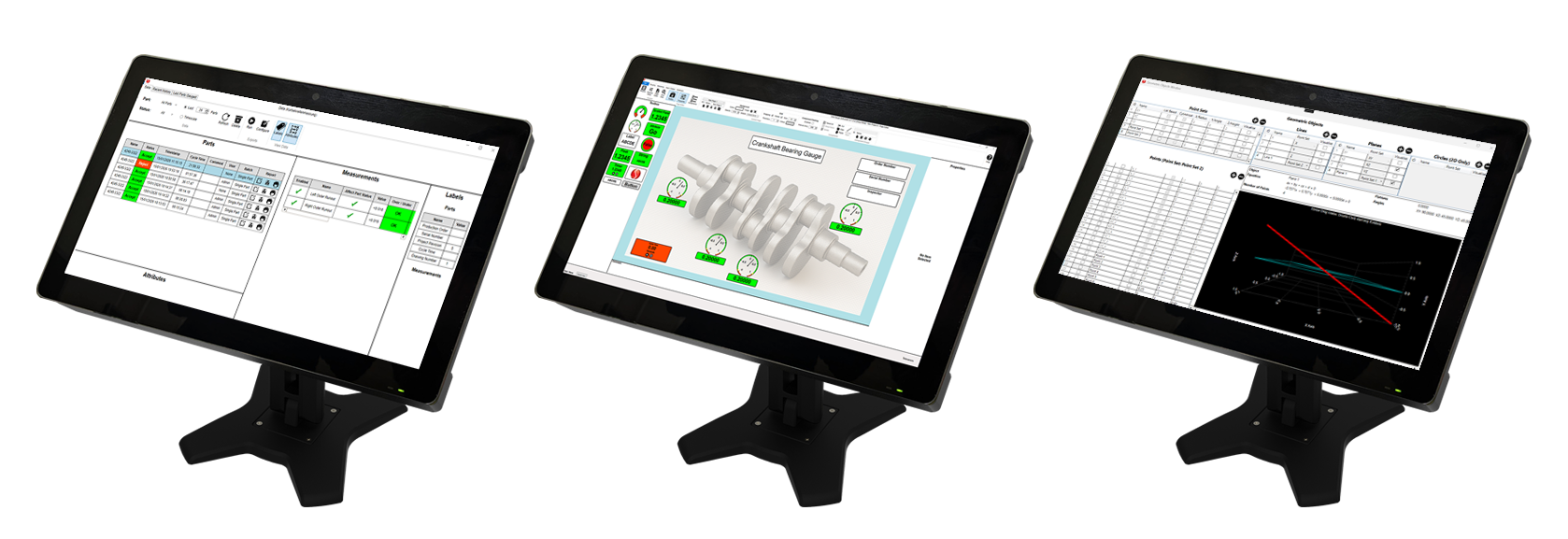

Solartron Metrology can implement a fully automated measurement system using Orbit® Gauge Software 5, equipping the user with unique capabilities. If hardware is required, OGS5 is offered on the SI 8500, a high powered readout with 15.6" capacitive touch screen, the capability to network up to 200 sensors, and high ingress protection for industrial applications.

Key Features

• Superior Performance - Heavy Duty Industrial Casing with Fanless PC Intel I 5 Processor
• Data Control - 500 GB of Storage, with easy data exportation
• Paneling Options - VESA and Panel Mount Options
• Variation - HDMI and DP++ outputs for connections to larger screens (when required)
• Easy Integration - Connects with all Orbit Sensors® & Modules
• High Ingress Protection - IP65 Front Panel

View Brochures and Drawings

Please click the links to view and download the following information:

Datasheet

Orbit Digital Gauge Catalogue
