DSP SHORT PROBES SPRING

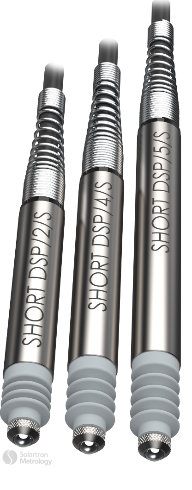

Short Probe DSP
DSP Short Probes



  • Same performance as standard digital probes with shorter body
  • 2, 4 and 5 mm measuring range
  • Accuracy better than 0.1 µm
  • Repeatability precision better than 0.05 µm
  • Resolution better than 0.01 µm
  • Range of contact sensor tips available
  • Spring actuation
  • Standard contact sensor tip force 0.7N (other options available)
  • IP65 sealing
  • Superior performance compared to traditional Linear Variable Differential Transformer (LVDT)

New from Solartron Metrology displacement sensors with short body lengths enabling these gauge probes to be mounted in locations where standard displacement sensors will not fit. Considerably shorter than standard digital displacement sensors and much shorter than conventional LVDT sensors, the short range of digital displacement sensors (DSP) still maintain all of the advantages of LVDT sensors while providing superior performance.
