DUS –Single Leaf Flexure

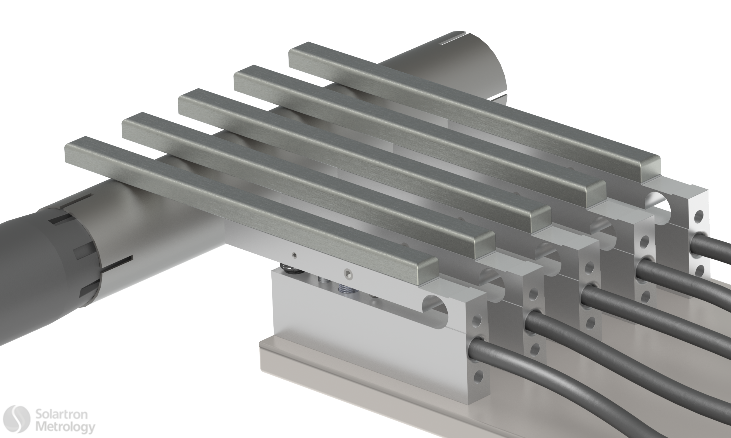

Single Leaf Spring Rig with Rotating Tool

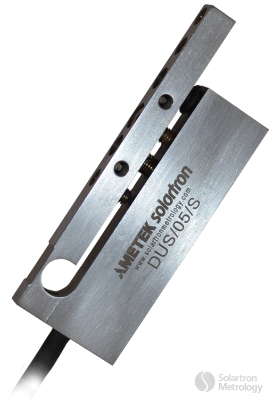

DUS Single Leaf Flexure
DUS –Single Leaf Flexure



  •

  • 0.5 mm measuring range
  • Accuracy better than 0.1 µm
  • Resolution better than 0.01 µm
  • Repeatability better than 0.01 µm
  • Spring actuation
  • IP65 sealing
  • Normal or Reverse Operation
  • Extension armsto increase measuring range
  •

    With the same advantages as the parallel flexure the single leaf flexure offers the gauge builder access to even more measurement points. With careful use of extension arms measurements can be made inside slots or between features where a conventional pencil probe cannot reach.
