AJP PNEUMATIC JET

DJP Pneumatic Push Actuation

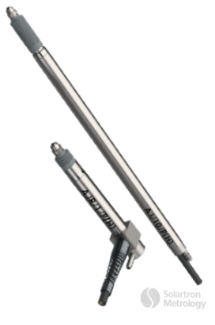

LVDT Gauge Probe | Pneumatic Piston Push AJ/P

  • ± 1, ± 2,5, ± 5, ± 10 mm displacement transducer measuring
       ranges
  •  Linearity better than 0.5% of precision measurement
  • Repeatability precision better than 0.05 µm
  • Range of contact sensor tips available
  • Pneumatic actuation using piston - still operates if gaiter
       damaged
  • Standard contact sensor tip force of 0.7N (options available)
  • IP50 sealing (fully sealed options available)
  • Inductive sensors with excellent sideload capability
  • Linear Variable Differential Transformer (LVDT) or Half Bridge
       options





  • Jet ‘J Type@’ probes are similar to pneumatic, except that actuation is by an inbuilt piston. High tip forces are available but as air is vented through a port close to the front of the LVDT displacement sensor, they have a lower IP rating. These pneumatic displacement probes will continue to operate even if the gaiter becomes punctured.
