D6J PNEUMATIC JET 6MM DIAMETER

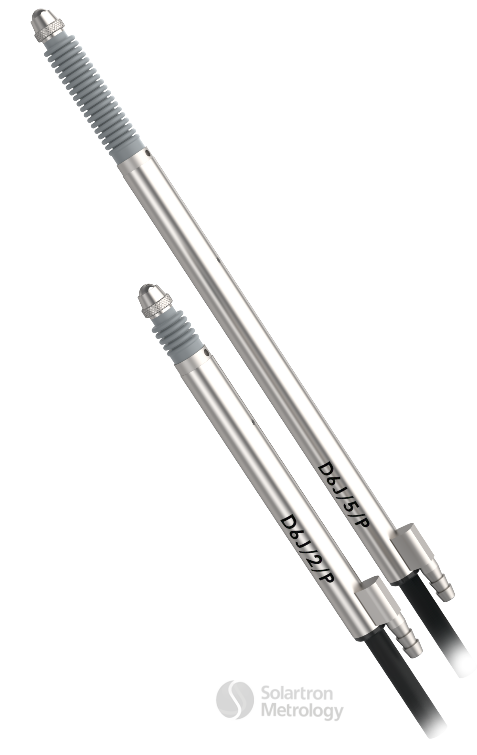

Pneumatic Push Actuation D6JP
D6J  PNEUMATIC JET 6MM DIAMETER



  • 6 mm diameter
  • Excellent for measuring features close together
  • 2, 5 and 12 mm displacement transducer measuring ranges
  • Accuracy better than 0.1 µm
  • Repeatability better than 0.05 µm
  • Resolution better than 0.01 µm
  • Range of linear displacement contact sensor tips available
  • Pneumatic actuation contact sensor
  • Standard gauge probe tip force 0.7 N with 1 bar pressure
  • Superior performance compared with traditional Linear
  • Variable Differential Transformer (LVDT) displacement sensors



    • With the D6P probes, a 25% diameter reduction over conventional probes has been achieved, yet performance and life expectancy has been maintained. Long life precision bearings ensure that probes maintain their performance for millions of cycles
